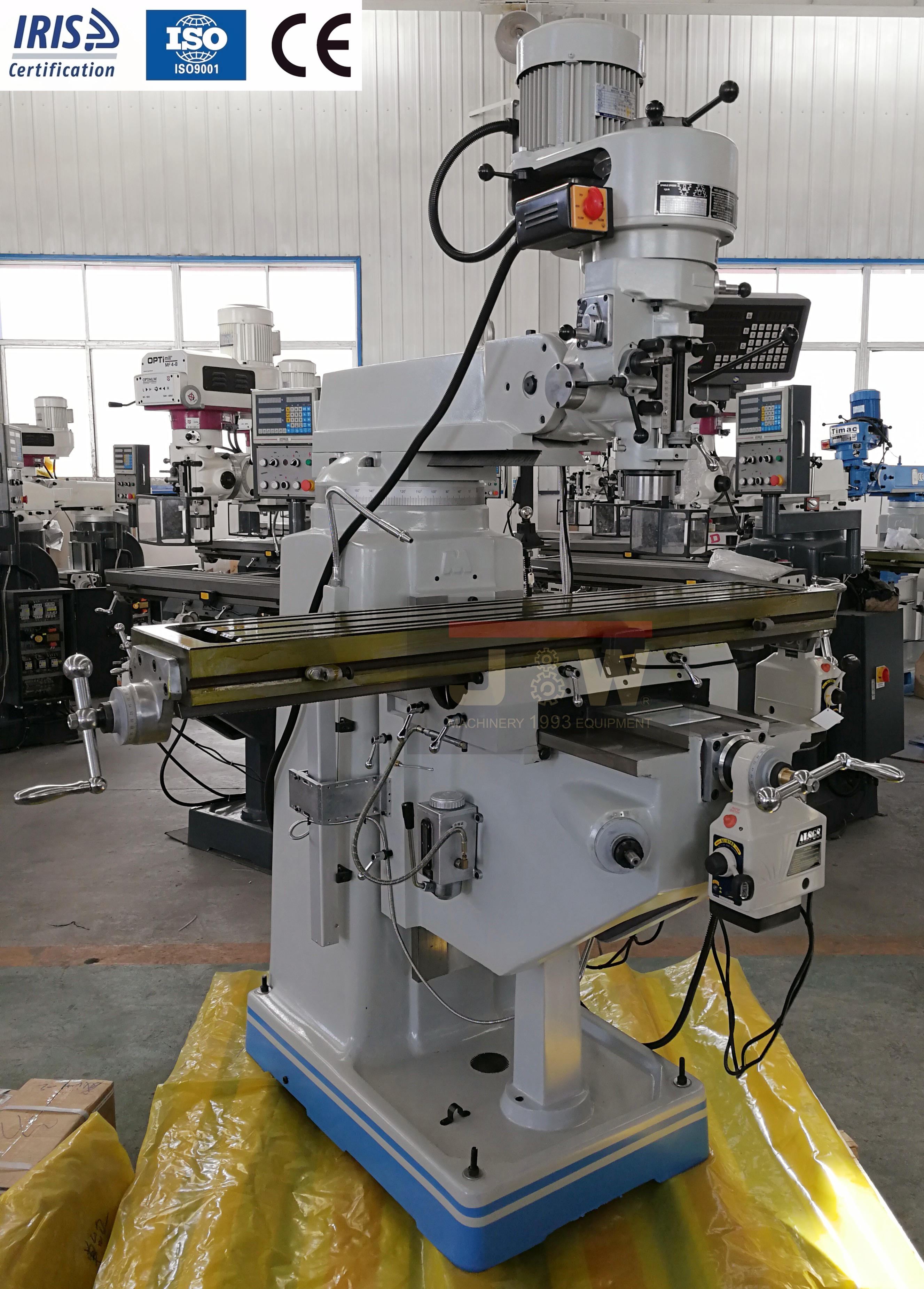

X6325

Standard accessories (X6325):

1) 3HP 16 step speed head,spindle taper R8,quill dia:86mm,quill travel 127mm;

2) Table size:10"x50",table travel:850x420x400mm

3) Manchine work lamp;

4) Lubrication system;

5) Draw bar;

6) Tool and tool box;

7) X & Y axis lined with turcite B coating;

8) X guideway is dovetail;Y&Z guideway is rectangular;

9) chip cover(front and back);



Optional accessories (X6325):

1) 3HP variable speed head add:USD600.00/set;

2) 2-axis SINO brand DRO add:USD240.00/set;3-axis add:USD360.00/SET

3) Machine vice with swivel base QM16160(6") add:USD100.00/set;

4) Clamp kits add:USD36.00/set;

5) Coolant system and chip tray add:USD110.00/set,

6) Centralized control panel(24V safety voltage control) add USD240.00/set;

7) 10"x54" table add:USD70.00/set.

8) Electric lifting add:USD320.00/set.


Specification:

UNIT

X6325

Table size:

inch

10"x50"

Table travel

mm

850x420x400

T-slot number/width/length

mm

3/16/63

Max.loading

kg

300

Spindle taper


R8

Spindle speed

rpm

65~4540

Quill travel

mm

127

Quill diameter

mm

86

Quill feed

mm

0.04/0.08/0.15

Swivel angle of head


±90°(L/R)/ ±45°(F/B)

Ram travel

mm

480

Ram swivel


360°

Main motor

Kw

2.25

Coolant motor

Kw

0.04

N.W.

KG

1250
