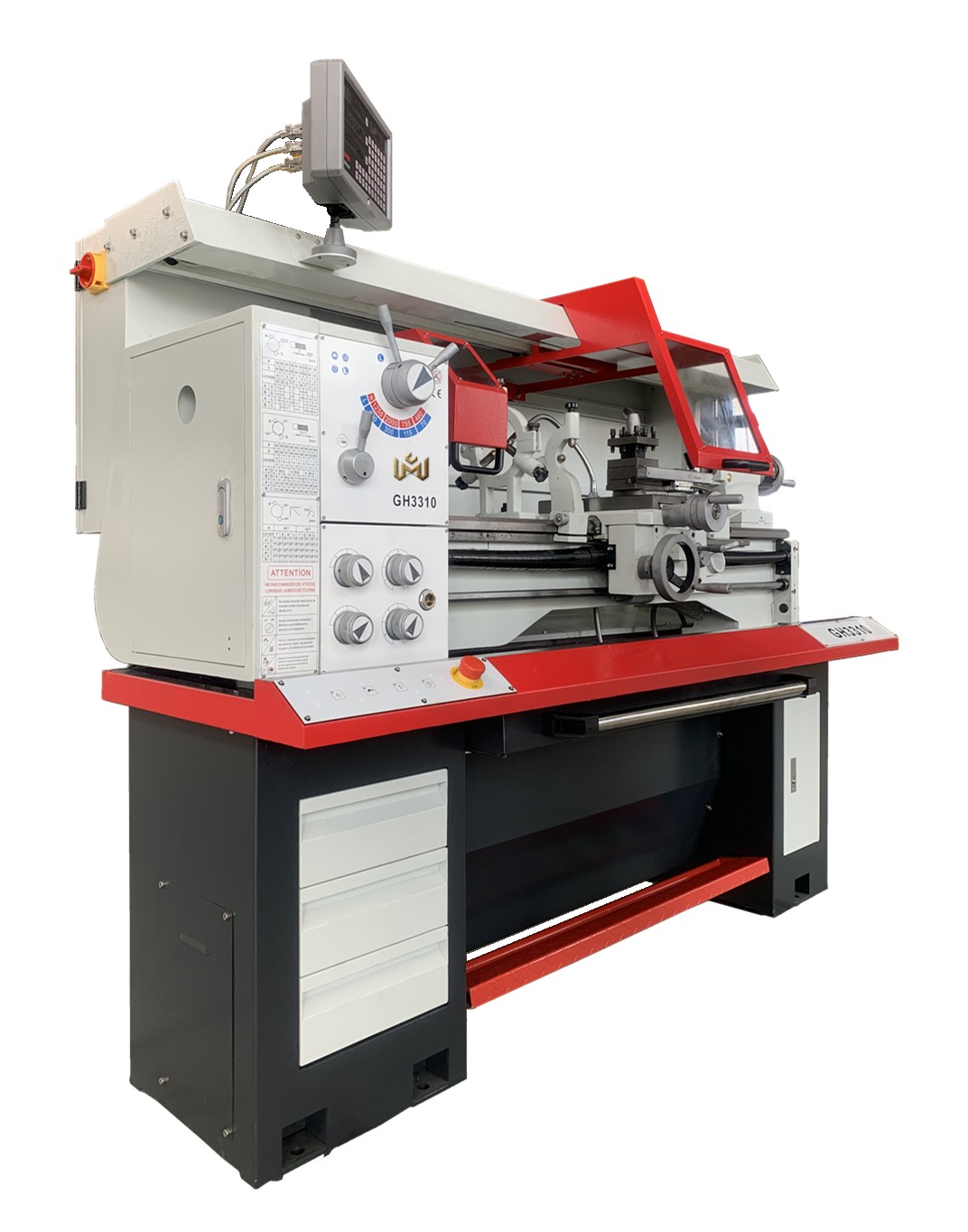

Precision Lathe GH3310 GH3610
Machine feature:
1. New exterior design, beautiful layout, with convenient tools sliding drawer, full length turret cover to keep operator safe and turning check .
2. The actuating lever is abolished, replacement is electric control, easy, convenient and simple operating.
3. The casting iron bed can be assembled for better rigidity and stability.
4. Major electric components are Schneider and EATON, DELTA PLC can ensure the good running and operating.
5. Max. spindle speed is 2000rpm and variable frequency speed is optional, the speed will be 3000rpm.
6. Automatic lubricating system for lathe slide surface.
Technical parameter: | GH3310 | GH3610 |
Capacity: | ||
Swing over bed | 330mm | 360mm |
Swing over gap | 430mm | 480mm |
Swing over cross slide | 200mm | 226mm |
Distance between centers | 1000mm | |
Width of bed | 186mm | |
Headstock and main spindle: | ||
Spindle nose internal taper | MT5 (MT6 optional) | |
Spindle cam lock | D1-4 | |
Spindle bore | 38mm (51mm optional) | |
Range of spindle speeds | 70-2000rpm (70-3000rpm stepless optional) | |
Threads and Feeds: | ||
Metric threads: kinds/range | 0.4-7mm | |
Imperial threads: kinds/range | 4-56T.P.I | |
Longitudinal feeds | 0.052-1.392mm/rev | |
Cross feeds | 0.009-0.253mm/rev | |
Carriage: | ||
Cross slide travel | 180mm | |
Compound slide travel | 95mm | |
Tailstock: | ||
Tailstock quill diameter | 32mm | |
Tailstock quill travel | 110mm | |
Taper of tailstock quill | MT3 (MT4 optional) | |
Toolpost: | ||
Tool section | 16*16mm (20*20mm optional) | |
Motor: | ||
Main motor | 1.5kw (2.2kw optional) | |
Coolant pump | 40w | |
Others: | ||
N.W./G.W. (Approx.) | 650kg (With iron casting bed is 770kg) | |
Packing size (Approx.) | 2100x950x1800mm | |
