QC11Y Shearing Machine

DESCRIPTION

*The QC11Y series shearing machine can be produced according to customer’s requirement.

*Description and specification given in this catalogue are subjected to modification without notice.

Standard configuration:

Major electrical components: Schneider (France)
Major motor: YINGKAI (China)
Hydraulic pump: Sunny (USA)
Control valves: YOUTONG (China)
Seals: VALQUA (Japan)
Blades: SHANGJIU (China)
Ballscrew: HIWIN (Taiwan)

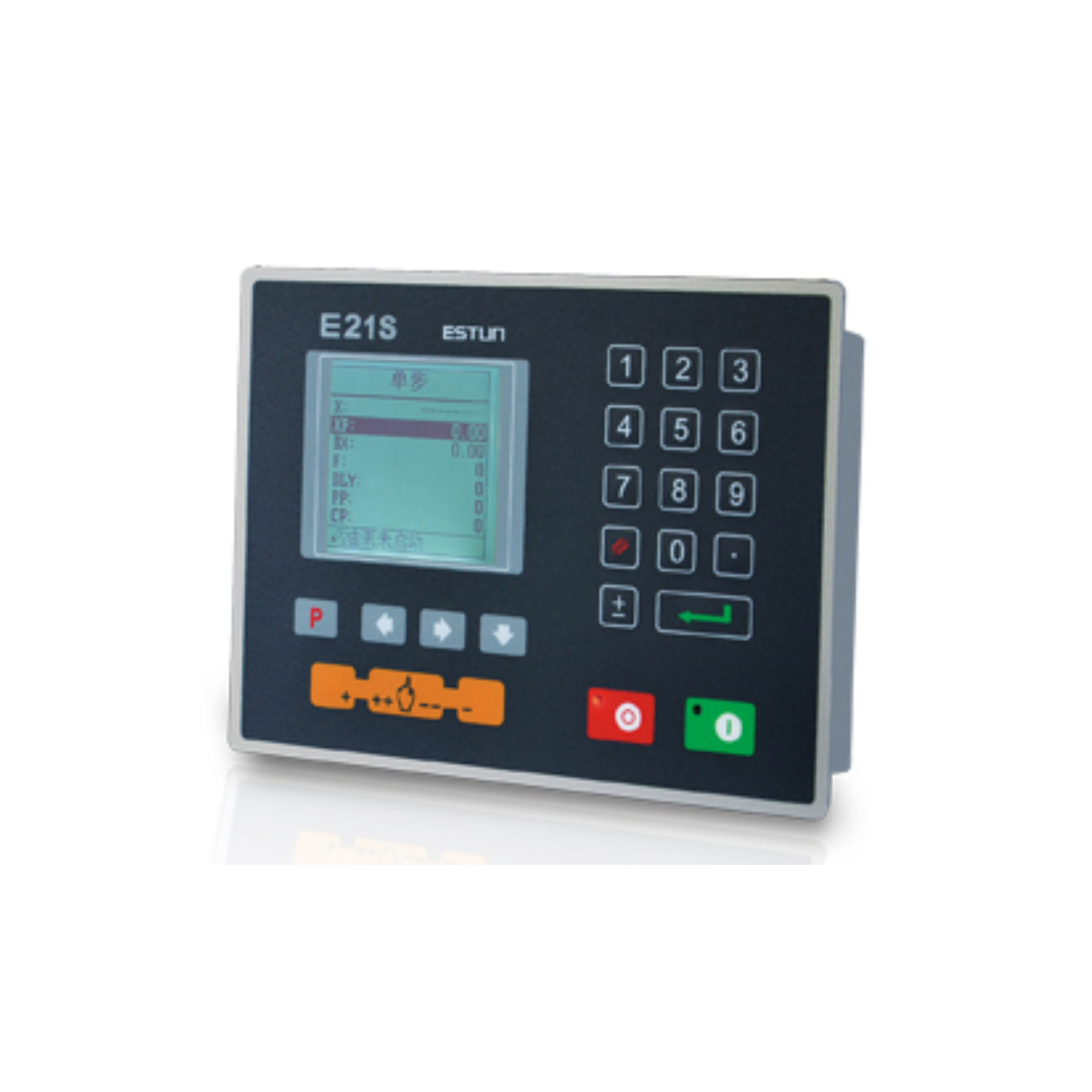

NC controller: ESTUN 21S (China)

Specification	Shearing Thickness	Shearing Width	Strokes	Back gauge Range	Shearing Angle	Throat Height	Main Power
QC11Y-6 x 2500	6mm	2500mm	14~30mm(-1)	20~600mm	0.5°~2°	800mm	7.5kw
QC11Y-6 x 3200	6mm	3200mm	12~28mm(-1)	20~600mm	0.5°~2°	800mm	7.5kw
QC11Y-6 x 4000	6mm	4000mm	10~24mm(-1)	20~600mm	0.5°~2°	800mm	7.5kw
QC11Y-6 x 6000	6mm	6000mm	6~18mm(-1)	20~600mm	0.5°~2°	850mm	11kw
QC11Y-8 x 2500	8mm	2500mm	12~28mm(-1)	20~600mm	0.5°~2°	800mm	11kw
QC11Y-8 x 3200	8mm	3200mm	10~24mm(-1)	20~600mm	0.5°~2°	800mm	11kw
QC11Y-8 x 4000	8mm	4000mm	8~20mm(-1)	20~600mm	0.5°~2°	800mm	11kw
QC11Y-8 x 6000	8mm	6000mm	6~16mm(-1)	20~600mm	0.5°~2°	850mm	15kw
QC11Y-10 x 2500	8mm	2500mm	12~28mm(-1)	20~600mm	0.5°~2°	800mm	11kw
QC11Y-10 x 3200	8mm	3200mm	10~20mm(-1)	20~600mm	0.5°~2°	800mm	11kw
QC11Y-10 x 4000	8mm	4000mm	8~20mm(-1)	20~600mm	0.5°~2°	800mm	11kw
QC11Y-10 x 6000	8mm	6000mm	6~16mm(-1)	20~600mm	0.5°~2°	850mm	15kw
QC11Y-12 x 2500	12mm	2500mm	10~24mm(-1)	20~600mm	0.5°~2.5°	800mm	15kw
QC11Y-12 x 3200	12mm	3200mm	8~16mm(-1)	20~800mm	0.5°~2.5°	800mm	15kw
QC11Y-12 x 4000	12mm	4000mm	6~14mm(-1)	20~800mm	0.5°~2.5°	800mm	15kw
QC11Y-12 x 6000	12mm	6000mm	4~16mm(-1)	20~800mm	0.5°~2.5°	900mm	18.5kw
QC11Y-16 x 2500	16mm	2500mm	8~14mm(-1)	20~800mm	0.5°~2.5°	800mm	18.5kw
QC11Y-16 x 3200	16mm	3200mm	6~10mm(-1)	20~800mm	0.5°~2.5°	800mm	18.5kw
QC11Y-16 x 4000	16mm	4000mm	5~10mm(-1)	20~800mm	0.5°~2.5°	850mm	22kw
QC11Y-16 x 6000	16mm	6000mm	4~16mm(-1)	20~800mm	0.5°~2.5°	1000mm	30kw
QC11Y-20 x 2500	20mm	2500mm	4~16mm(-1)	20~800mm	0.5°~3.5°	850mm	30kw
QC11Y-20 x 3200	20mm	3200mm	5~16mm(-1)	20~800mm	0.5°~3.5°	900mm	30kw
QC11Y-20 x 4000	20mm	4000mm	4~16mm(-1)	20~800mm	0.5°~3.5°	900mm	30kw
QC11Y-20 x 6000	20mm	6000mm	4~14mm(-1)	20~800mm	0.5°~2.5°	1000mm	37kw
QC11Y-25 x 2500	25mm	2500mm	5~16mm(-1)	20~800mm	0.5°~3.5°	900mm	37kw
QC11Y-25 x 3200	25mm	3200mm	4~16mm(-1)	20~800mm	0.5°~3.5°	900mm	37kw
QC11Y-25 x 4000	25mm	4000mm	4~16mm(-1)	20~800mm	0.5°~3.5°	1000mm	37kw
QC11Y-25 x 6000	25mm	6000mm	4~14mm(-1)	20~1000mm	0.5°~3.5°	1100mm	45kw
QC11Y-30 x 2500	30mm	2500mm	5~16mm(-1)	20~1000mm	0.5°~3.5°	1000mm	45kw
QC11Y-30 x 3200	30mm	3200mm	5~10mm(-1)	20~1000mm	0.5°~3.5°	1100mm	45kw
QC11Y-30 x 4000	30mm	4000mm	4~10mm(-1)	20~1000mm	0.5°~3.5°	1200mm	55kw
QC11Y-40 x 2500	40mm	2500mm	3~8mm(-1)	20~1000mm	0.5°~4°	1200mm	55kw
QC11Y-40 x 3200	40mm	3200mm	3~8mm(-1)	20~1000mm	0.5°~4°	1200mm	55kw
