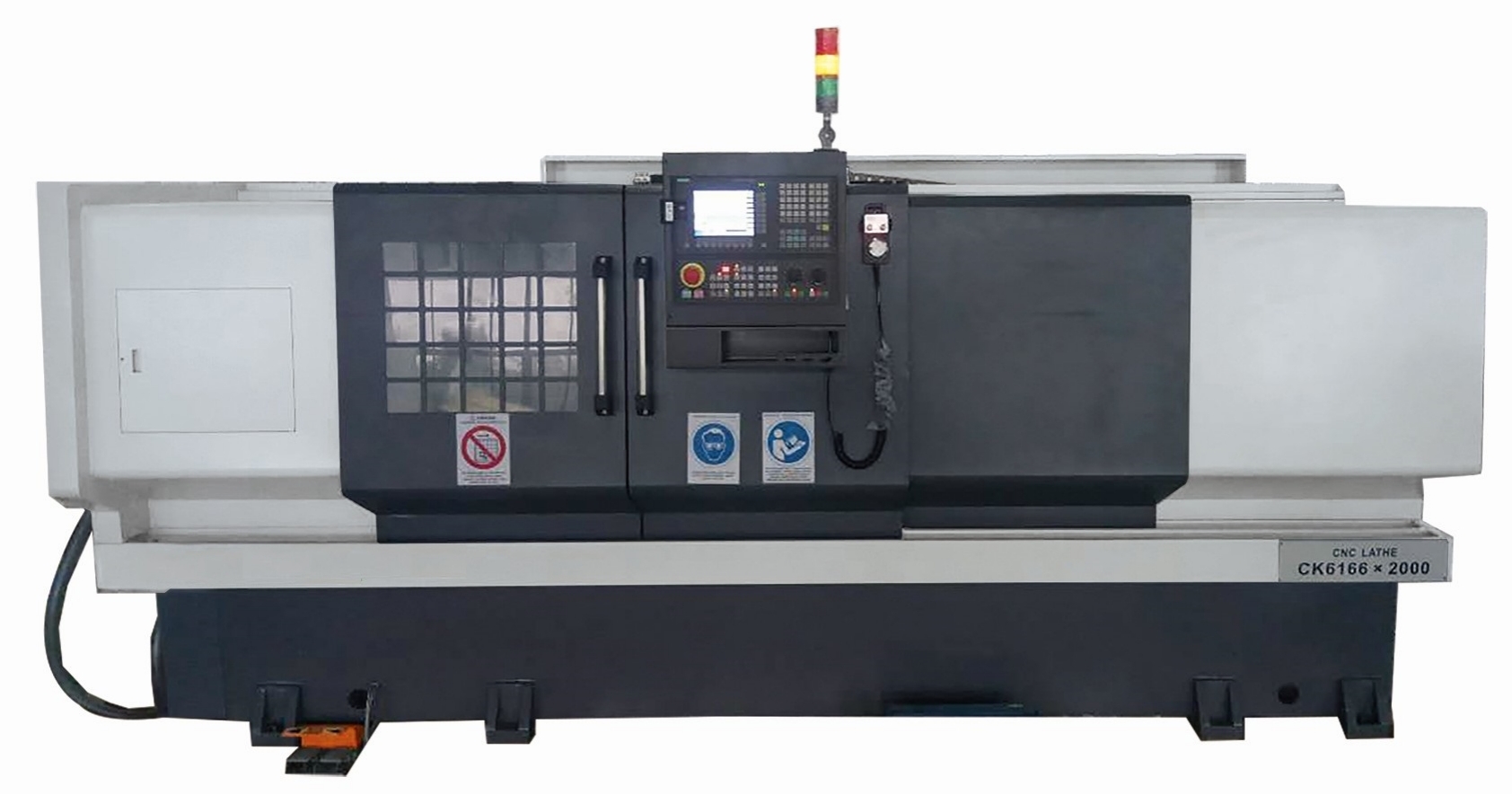

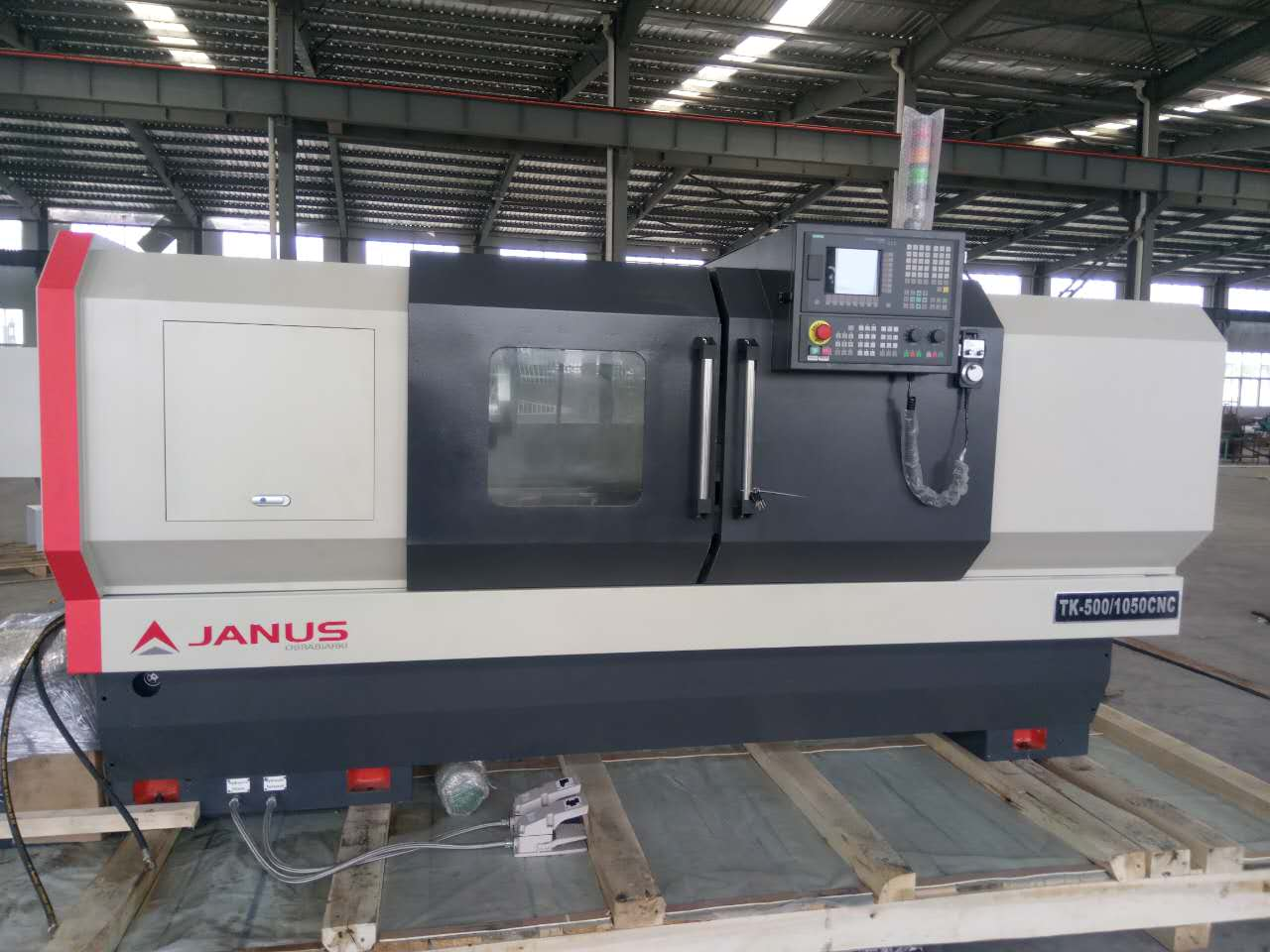

Max swing over bed

500mm

560mm

660mm

Max swing over cross slide

280mm

320mm

460mm

Distance between centers

1000/1500/2000mm

1000/1500/2000mm

1500/2000/3000mm

Rail width

400mm

400mm

460mm

Spindle nose

A2-8 (A2-11 optional)

Spindle bore diameter

Φ86mm (105mm optional)

Taper of spindle bore

Metric 1:20

chuck

10” (12” optional)

10” (12” optional)

10” (12”&15” optional)

Range of spindle speed

30-1600rpm (manual chuck)

30-1800rpm (hydraulic chuck)

30-1600rpm (manual chuck)

30-1800rpm (hydraulic chuck)

30-1000rpm (3 step range)

X axis travel

260mm

285mm

350mm

Z axis travel

1000/1500/2000mm

1000/1500/2000mm

1500/2000/3000mm

X/Z axis feeding power

8/11N.m

10/15N.m

Station of the tool carrier

4 (6 & 8 optional)

Max.section of tool

25x25mm

25x25mm

32x32mm

Travel of the tailstock

180mm

180mm

245mm

Diameter/taper of the tailstock

Φ75mm/MT5

Φ100mm/MT5

Φ102mm/MT5

Main motor power

7.5kw (11kw optional)

7.5kw (11kw optional)

11kw (15kw optional)

Coolant pump power

180w

200w

250w

◆ 4 position electric turret

◆ Full-protection

◆ Working lamp and alarm light

◆ Frequency conversion spindle motor

◆ Wrench

◆ Reduction sleeve

◆ Dead center

◆ 8” 3-jaw manual chuck

◆ Automatic lubrication system

◆ Siemens electric components

◆ Variable-frequency drive

◆ Thread turning encoder

◆ Heat exchanger

◆ Automatic coolant system

OPTIONAL EQUIPMENT

◆ AC servo main motor

◆ Pneumatic or hydraulic hollow chuck

◆ Hydraulic tailstock

◆ Pneumatic collet chuck
