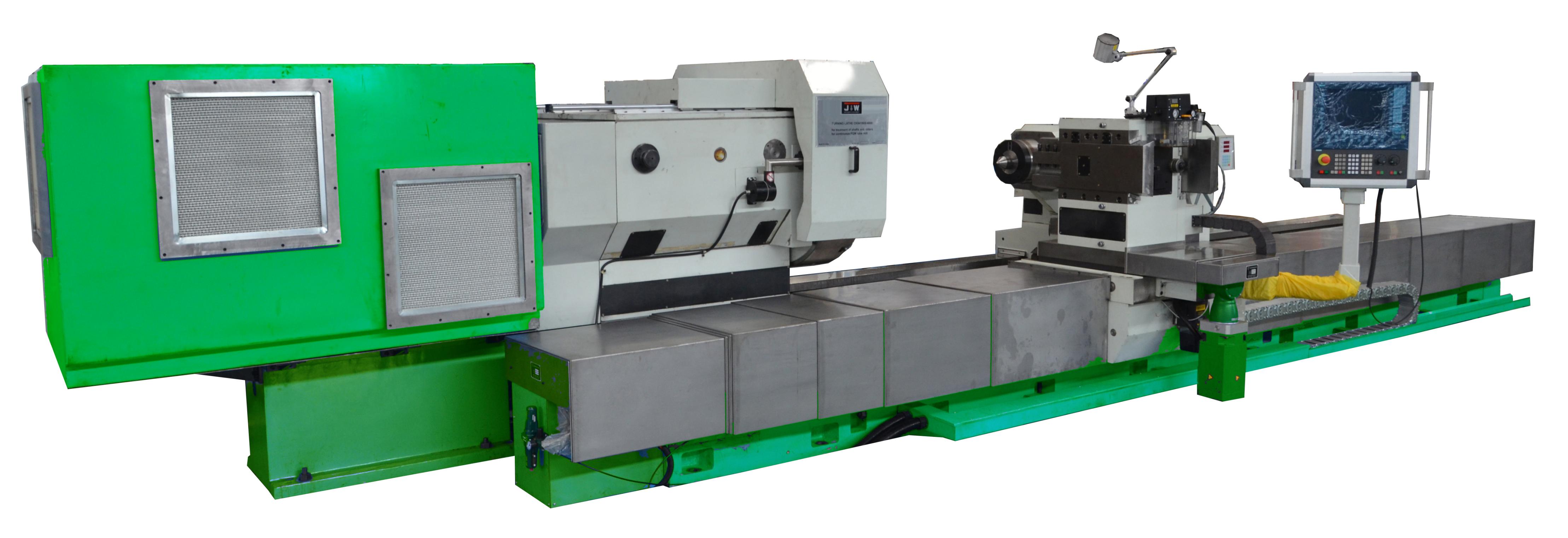

CK84100S

DESCRIPTION

The Uses and general introduction 1.The machine is special-purpose machine for machining wheel sets profiles, journals and inside of locomotives ,and gauge of which is 1435mm. It is suitable for manufacturing and repairing factory of railway and transport department concerted，The machine can meet turning of wheel set profiles, journals, and meet related standard of Ministry of Railway. 2.CNC Wheel lathe consists of lathe bed、left/right headstock、left/right tool carriage（include tool-setting measuring device）、jack、hydraulic system、electrical control system、lubrication system etc. Main drive can be driven by two AC frequency conversion motors, and spindle realize stepless speed change within 7.5～42r/min by precision planetary gear reducer. Machine CNC System adopt SIEMENS 828D（other CNC Systems are available on the request of customer），feed system is driven by servo motor.

SPECIFICATIONS:	CK8480S	CK84100S		CK84125S		CK84160S	CK84200S
Max. swing over bed	800mm	1000mm		1250mm		1600mm	2000mm
Max. Turning length	option
Max. weight of workpiece	18kg	18kg	25kg	18kg	40kg	50kg	63kg
Type of bed guideway(3/4)	3	3	3月4日	3	4	4	4
Width of bed	1350mm	1350mm	1600mm	1350mm	1600mm	2050mm	2050mm
Front diameter of spindle	280mm	280mm	320mm	280mm	400mm	500mm	560mm
Machining roll range	200~800mm	200~1000mm		200~1250mm		400~1600mm	600~2000mm
Speed steps of soindle	viriable speed	viriable speed II		viriable speed		viriable speed	viriable speed
Speed steps of soindle	viriable speed	viriable speed		viriable speed		viriable speed	viriable speed
Range of spindle speeds	2~160r/min	2~160r/min	2~200r/min	2~160r/min	2~200r/min	0.8~160r/min	0.63~125r/min
Main motor power	55kw	55kw	75kw	55kw	110kw	110kw	125kw
Torque of servo motor-Z axis	41Nm
Torque of servo motor-Z axis	41Nm
Max. cutting force for single tool post	50kN	50kN	63kN	50kN	100kN	100kN	125kN
Max. torqur for faceplate	30kN.m	35kN.m	50kN.m	35kN.m	50kN.m	80kN.m	100kN.m
Diameter of faceplate	1000mm	1000mm		1250mm		1600mm	2000mm
Travel of cross slider	500mm	500mm	750mm	500mm	750mm	620mm	750mm
Clamp range of faceplate	280~650mm	350~800mm		500~1000mm		630~1250mm	800~1600mm
Rapid cross speed	4000mm/min
Rapid longitudinal speed	4000mm/min
Diameter of tailstock quill	280mm	280mm	300mm	280mm	400mm	500mm	560mm
Rapid travel of tailstock	2900mm/min	2900mm/min	2140mm/min	2900mm/min	2140mm/min	2140mm/min	2500mm/min
Travel of tailstock quill	250mm	250mm	300mm	300mm		300mm	300mm
Machine weight(max. turning length)	29(4m)	35(6m)	35(5m)	36(5m)	50(7m)	53(6m)	75(7m)
